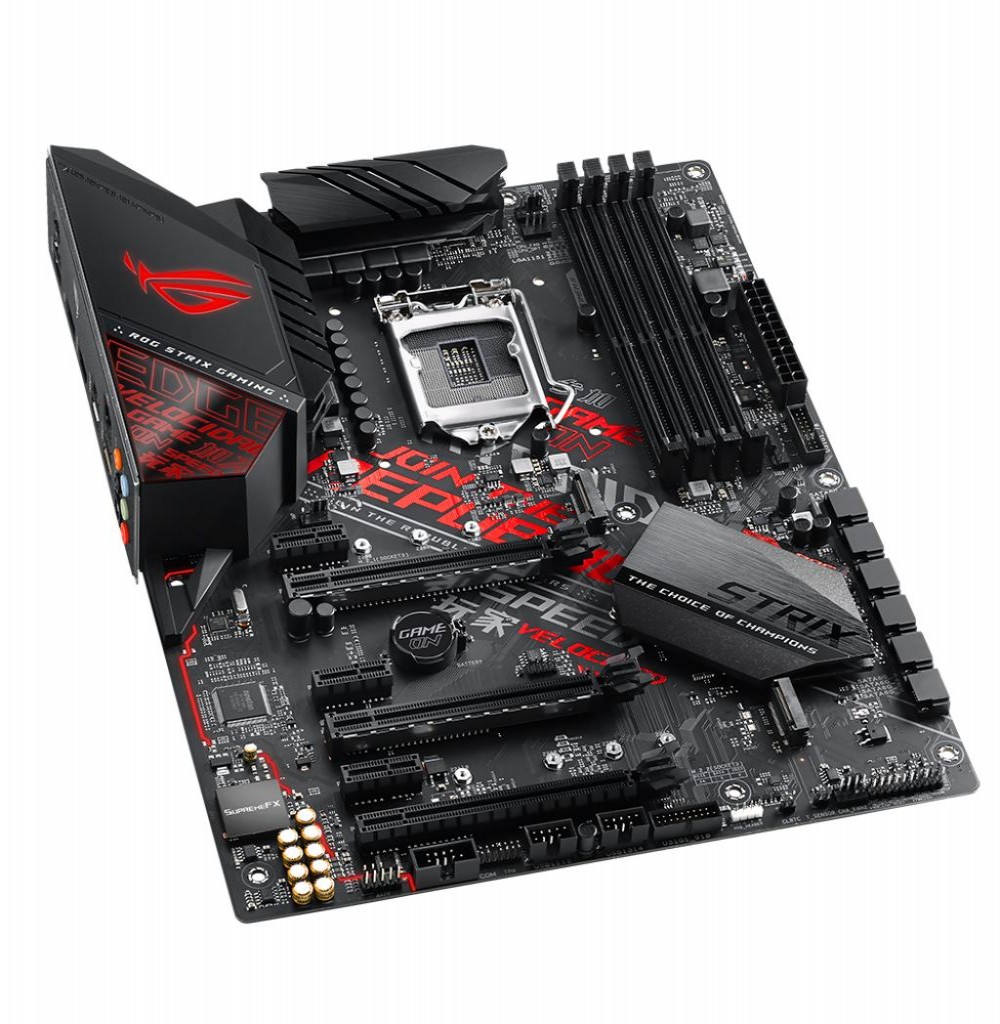

Asus traz para você uma placa mãe muito poderosa! Oferece todas as funções essenciais que você precisa para aproveitar todo o potêncial do componente, incorporando tecnologias inovadoras que lhe permitirá escolher entre uma variedade de elementos para configurar seu PC. Com o processador Intel® Socket 1151 garante uma potência melhor do que as outras
Processador: Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset: Intel® Z390
Memória: 4 x DIMM, Max. 64GB, DDR4
Armazenamento: Intel® Z390 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready
LAN: Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Portas USB: Intel® Z390 Chipset : 4 x USB 3.1 Gen 2 port(s) (4 at back panel, red) Intel® Z390 Chipset : 6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board) Intel® Z390 Chipset : 4 x USB 2.0 port(s) (4 at mid-board)
Gráfico: Integrated Graphics Processor- Intel® HD Graphics support
Áudio: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
Portas no painel Traseiro: 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 2 Type-A 2 x USB 3.1 Gen 1 1 x Optical S/PDIF out 5 x Audio jack(s)
Painel Interno: 1 x AAFP connector 1 x Aura RGB Strip Header 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x TPM connector(s) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Thermal sensor connector 1 x CPU_OV jumper
Sistema: Windows® 10 64-bit
Dimensões: 30.5 cm x 24.4 cm
Suporte Multi GPU: Supports NVIDIA® 2-Way SLI™ Technology Supports AMD 3-Way CrossFireX™ Technology
Slots de Expansão: Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) Intel® Z390 Chipset 1 x PCIe 3.0/2.0 x16 (x2 mode) 3 x PCIe 3.0/2.0 x1
